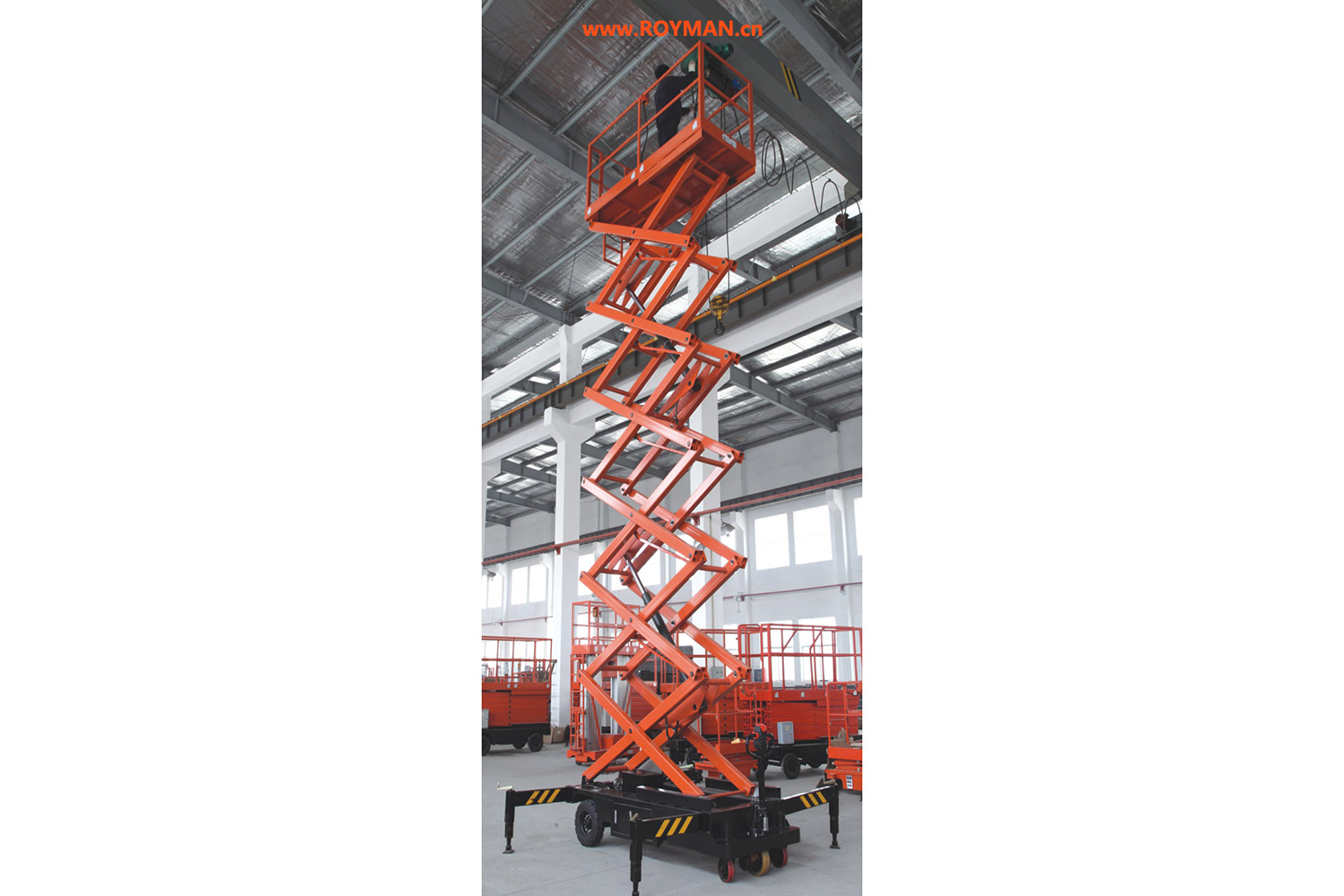

2015-08-14| 電動牽引剪叉式升降平臺型號 規格 Model Number | SJY0.5-6 | SJY0.5-7.5 | SJY0.5-9 | SJY0.5-11 | |
| 平臺最大高度Max.Platform Height | mm | 6000 | 7500 | 9000 | 11000 |
| 平臺最低高度Min.Platform Height | mm | 1080 | 1200 | 1360 | 1480 |
| 工作平臺尺寸Platform Size | mm | 2200×1000×1000 | |||
| 平臺額定載荷Lift Rated Capacity | kg | 500 | |||
| 撐腿展開尺寸The Developed Dimension Of Legs | mm | 2700×2200 | |||
| 上升時間Elevating Time | s | 59 | 77 | ||
| 驅動電機Driving Motor | v/kw | 24/1.2 | |||
| 舉升電機Lifting Motor | v/kw | 24/2.2 | 42087 | ||
| 免維護電池Electromotor Power | v/Ah | 2×12/150 | |||
| 充電器Charger | v/A | 24/20 | |||
| 電機功率Electromotor Power | kw | 2.2 | 3 | ||
| 整機長度Overall Length | mm | 2540 | |||
| 整機寬度Overall Width | mm | 1300 | |||
| 整機高度Overall Height | mm | 1180 | 1300 | 1460 | 1580 |
| 整機重量Overall Net Weight | kg | 950 | 1350 | 1600 | 1800 |
| 整機重量Overall Net Weight | kg | 950 | 1350 | 1600 | 1800 |
