2015-08-16| 特性Identification | 產品型號Model | CPD05 | ||||
| 配置號 Config-code | RM05 | |||||
| 驅動形式Drive Unit | 電動Electric | |||||
| 駕駛方式Operation type | 座駕式Seated | |||||
| 額定載重Load capacity | Q | kg | 500 | |||
| 載荷中心Load center | C | mm | 350 | |||

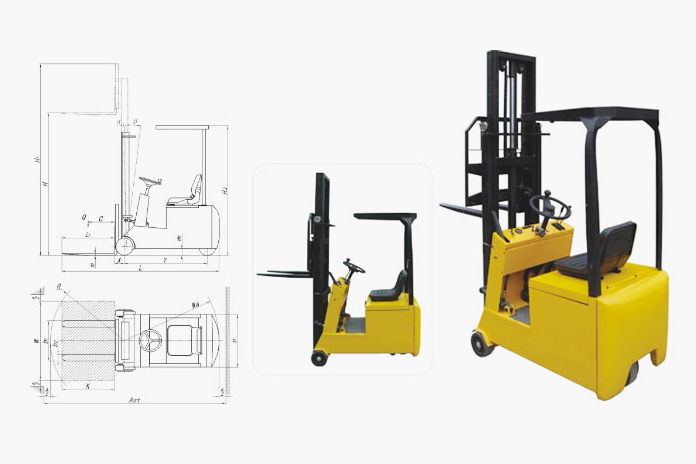

| 基本尺寸Dimension | 總長Overall length | L | mm | 2080 | ||
| 車體寬度Overall width | b | mm | 795 | |||
| 總高 | 門架靜止 | mm | 1775 | |||
| Overall height | 護頂架 | H2 | mm | 1800 | ||
| 起升高度Lift height | H | mm | 2500 | |||
| 作業時最大高度Max working height | H1 | mm | 3290 | |||
| 貨叉尺寸Fork dimensions | L1×b2×m | mm | 680×80×30 | |||
| 貨叉外寬Maximum fork width | b1 | mm | 160-700可調 | |||
| 最小離地間隙Minimum ground clearance | m1 | mm | 100 | |||
| 最小直角通道Min. right angle aisle width | mm | 1660 | ||||
| 門架傾角Mast obliquity | α/β | ° | 1~9 | |||
| 軸距Wheelbase | Y | mm | 1040 | |||
| 前懸距Front overhang | X | mm | 170 | |||
| 轉彎半徑Turning radius | Wa | mm | 1250 | |||
| 性能Performance | 行駛速度 | 滿載loaded | Km/h | 5.8 | ||
| Travel speed | 空載unloaded | Km/h | 7 | |||
| 提升速度 | 滿載loaded | mm/s | 107 | |||
| Lift speed | 空載unloaded | mm/s | 132 | |||
| 下降速度 | 滿載loaded | mm/s | 148 | |||
| Lowering speed | 空載unloaded | mm/s | 154 | |||
| 爬坡能力Gradeability | % | 8 | ||||
| 制動方式Brake type | 電磁制動 | |||||
| 電機Electric Motor | 驅動電機功率Drive motor power | KW | 0.75 | |||
| 提升電機功率lift motor power | KW | 2 | ||||
| 蓄電池 Battery | Ah/V | 160/24 | ||||
| 重量Weight | 凈重(不含電池) Weight without battery | kg | 800 | |||
| 電池重量 Battery weight | kg | 168 | ||||
